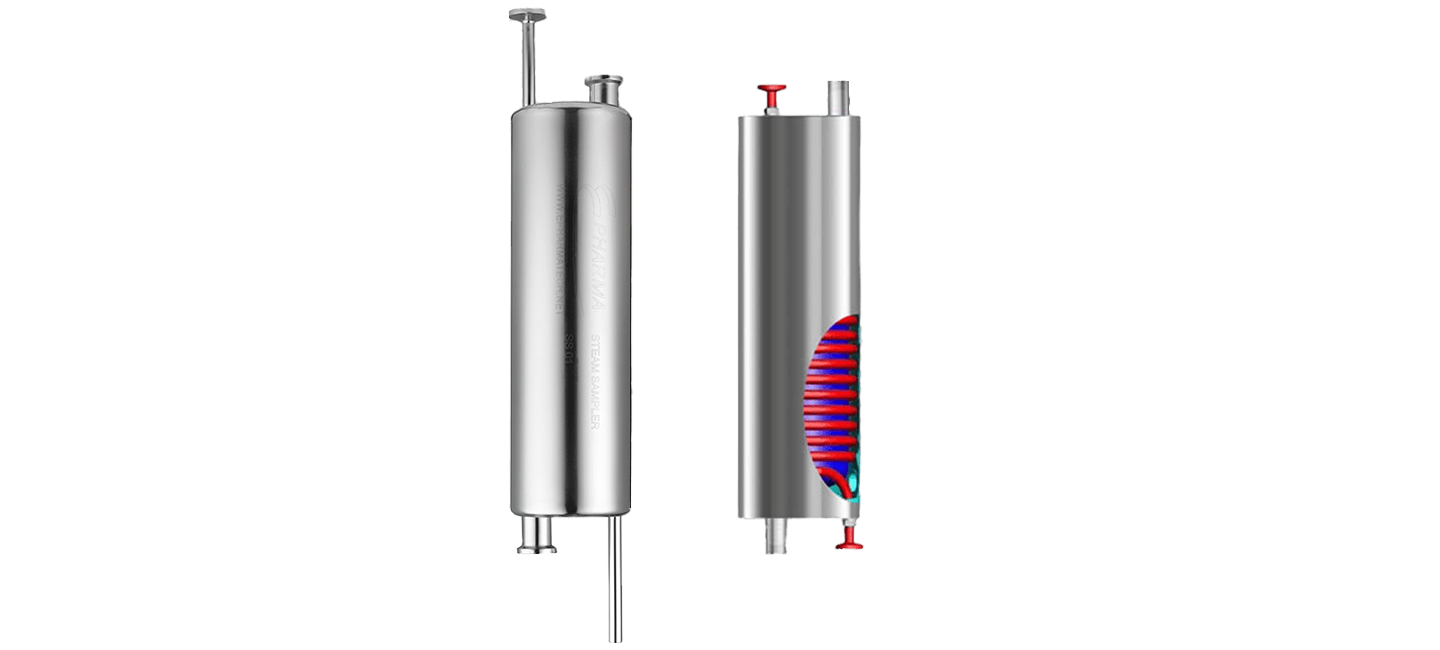

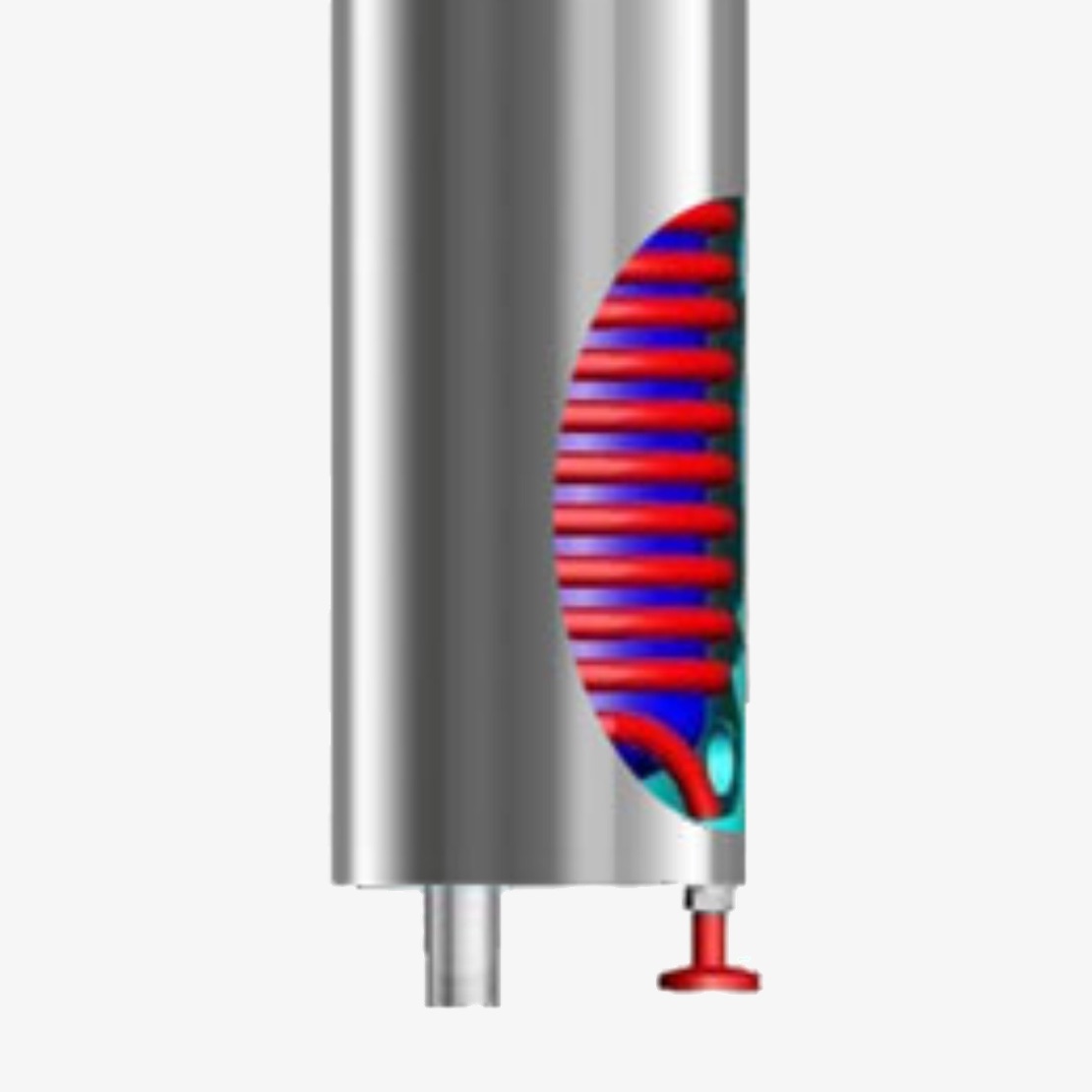

Pure steam sampler is a portable cooler designed to allow samples to be taken quickly and safely at any accessible location within a clean steam or high purity steam or WFI distribution system. Cooling water connections are Tri-clamp compatible which enable the unit be connected easily to a local water supply. The whole sampler could be sterilization by autoclaving.

• Cooling water inlet and outlet connections

  TC 3/4”

• Sample tube inlet

  TC 1/2"

• Surface area

  around 0.113m²

• Design pressure

  15bar

• Shell dimension

  80mm (dia)*260mm

• Capacities (approximate)

  steam 160ml/min

• Assume cooling water

  6L/min at 20 degree
